Lil' MAC LMJ4 Electric Vehicles

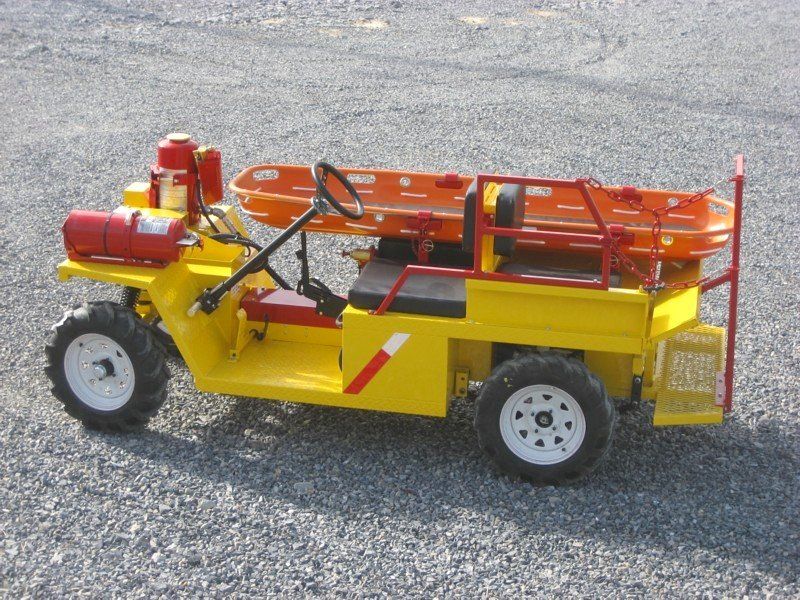

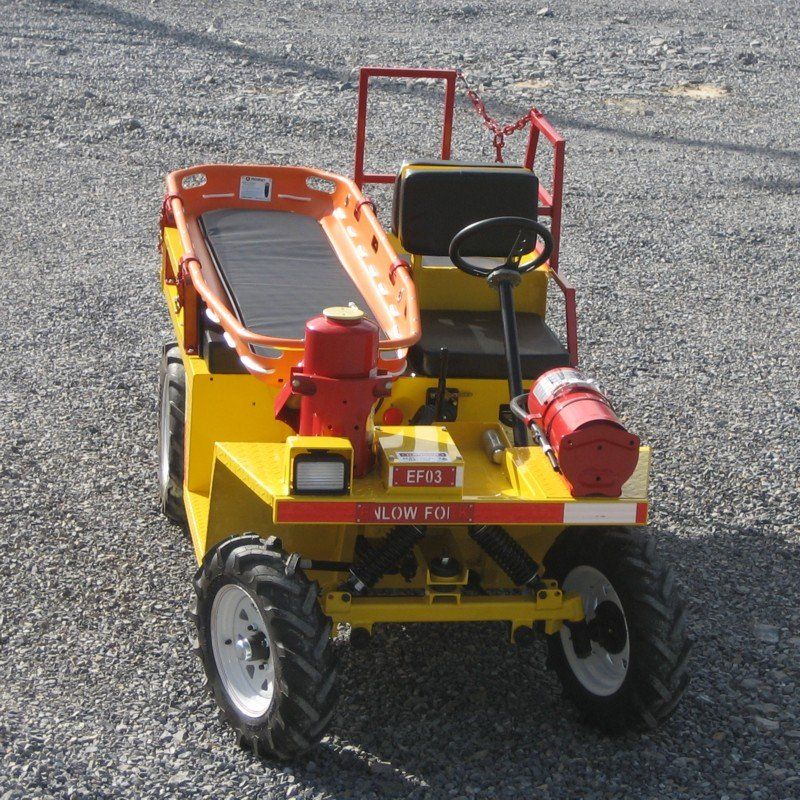

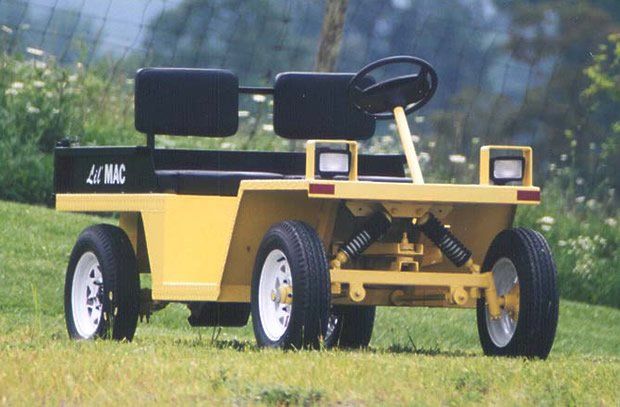

(Available in 'Rescuer' & 'Utility Vehicle' Models)
Specifications
LMJ4 Rescuer Brochure Download LMJ4 Utility Vehicle Brochure Download
Description
  • Triple acting front suspension
  • Heavy duty 6 h.p. motor
  • 600 Amp Controller, Regen Braking
  • Heavy duty springs with shocks
  • 6 Trojan 6V T-105 Batteries

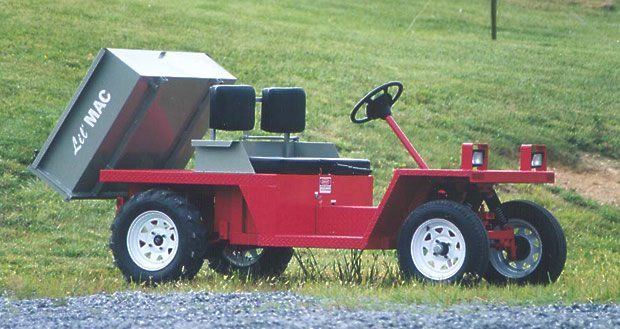

  • Optional Dump bed or Flat bed
  • Motor Mounted Parking Brake
  • Dimensions

    Height: 48 3/4”” std. to top of steering

    wheel. Min. seam height of 65”

    Width: 3’-8”

    Length: 10’-7 ¾”

    Turning radius: 12’ I.S.

  • Ground Clearance

    10 1/2” standard


    8 1/2” with smaller tires

  • Weight

    1,165 lbs

  • Payload

    2 person plus tools and equipment

  • Electrical

    36 Volt 600 amp controller, regenerative braking feature, no F/R contactors, manual battery disconnect

  • Battery

    6-6 volt 115 minute @ 75 amps

  • Battery Charger

    Lester Electrical Charger. Constant Voltage.


    Input: 115 volt —10 amp

    Output: 48 volt — 18 amps.

  • Headlights

    One Front/Rear, 36v

  • Motor

    6 Horsepower — Continuous — TENV — Bar wound — Heavy Duty Brush Rigging

  • Brake

    Motor mounted service / parking brake std. or optional hydraulic caliper brake @ each rear wheel, Mechanical park brake mounted on motor armature shaft

  • Rear Axle

    1600 lbs rear axle with tapered roller bearings.

    Grease fittings at wheel bearings.


  • Front Suspension

    Triple acting front suspension is rubber mounted for a smooth maintenance free ride

  • Rear Suspension

    Heavy duty leaf springs with gas shocks

  • Tires

    Front: 530x12—6 ply rating 10 1/2” g.c.

                570 x 8 — 6 ply rating 8 3/4” g.c.


    Rear: 600x12— tractor tread 10 1/2” g.c.

              18x9.50x8 — tractor tread 8 1/2” g.c.

  • Tram Speed

    10 Miles per Hour (approximately)

  • Options

    Seats, Canopy, Tires, Lift Kit, Strobe Lt.
